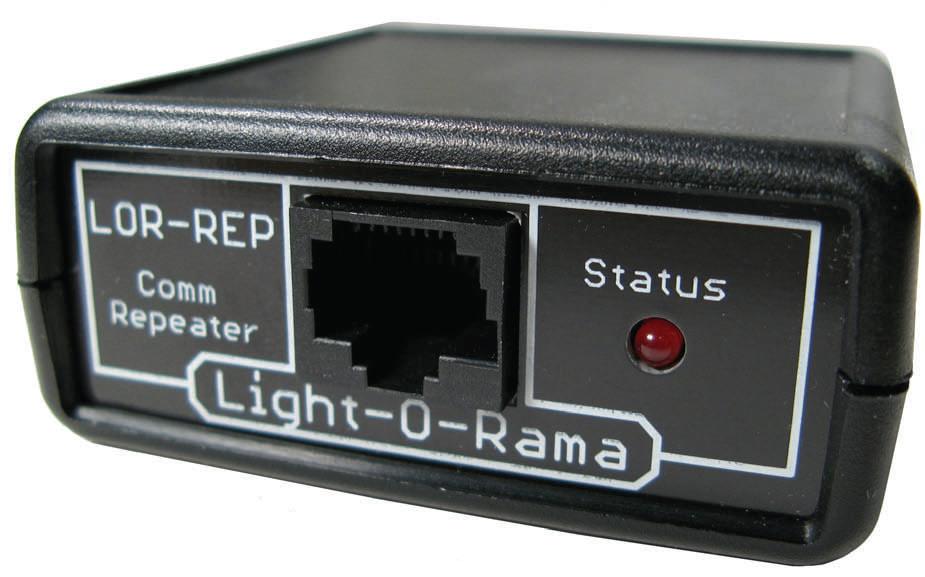

RS485 Network Repeater

Description

The Light O Rama Repeater makes it possible to support an extremely large network of controllers, a network that is not simply "a wire running from one controller to the next in a daisy chain," or a combination of these two. Can extend a Light O Rama network beyond the 4000’ maximum permitted by the RS485 electrical protocol.

RS485 Network Repeaters sold in 2019 and later are capable of running on an enhanced network at any speed.

The status LED indicates power (flashing) and connection to a PC or director (solid.)

• Allows complex Light O Rama network topologies in addition to the recommended daisy-chain
• Powered by nearby Light O Rama controllers over the network cable so no separate power supply is needed
• Small enough to fit inside a controller box for outdoor applications • Bi-directional to support interactive inputs on controllers
• No configuration required — simply plug in the Light O Rama network cables
• Has one RJ45 jack on the front and two RJ45 jacks on the back to allow the network to ‘Y’
